I need more than 8 input switches on a HD1025

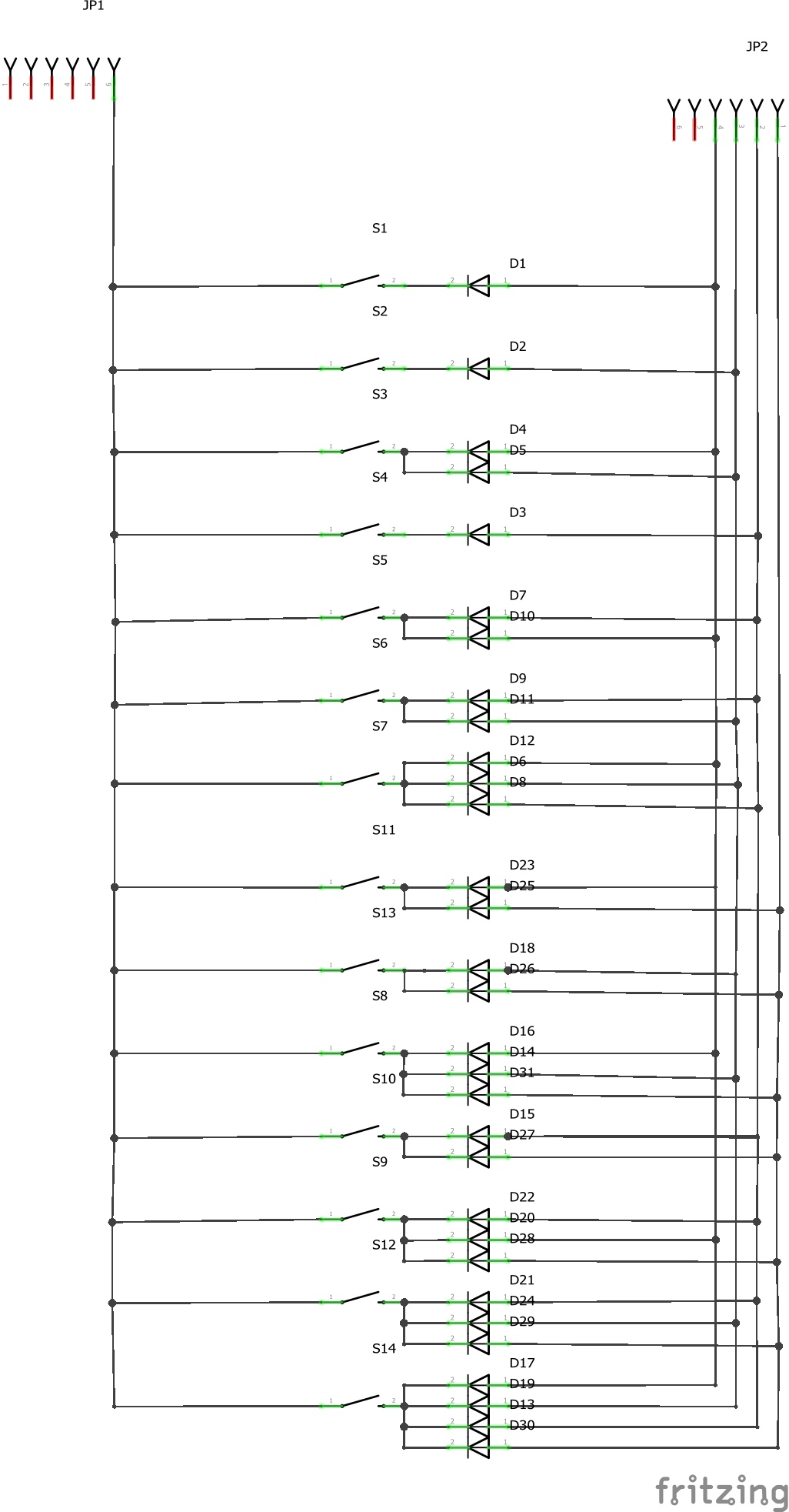

In another case I needed 10 switches and made a decimal to binary matrix with diodes so this gave max 15 inputs with switches connecting to ground. I did make a simple autorun.brs for that.
Now I need even more switches and have been looking into doing a muxed version .. gpio 0,1,2,3 whille alternate high to low and I will then read the input on gpio 4,5,6,7. I have now made a new autorun which does that and it work fine (Max 60 switches)
Next step is to make it as a plugin and white the sw values input to 4 variables which can be used in the BAC.
I have trouble to do that correctly ... either the script runs continually (scanning the rows and never comes to the real application in BAC.
Or alternativ the BAC works but the sw are not scanned.
Hope you have some suggestions how to do this.???
Function Gpio_Mux(msgPort As Object, userVariables As Object, bsp As Object)
m.port = CreateObject("roGpioControlPort")
m.msgPort = CreateObject("roMessagePort")
count = 55
value_1 = 11
value_2 = 12
value_3 = 13
value_4 = 14
value_old_1 = 0
value_old_2 = 0
value_old_3 = 0
value_old_4 = 0
m.port.EnableOutput(0)
m.port.EnableOutput(1)
m.port.EnableOutput(2)
m.port.EnableOutput(3)
m.port.EnableInput(4)
m.port.EnableInput(5)
m.port.EnableInput(6)
m.port.EnableInput(7)
rem while true
for colIndex = 0 to 3
m.port.SetOutputState(0,true)
m.port.SetOutputState(1,true)
m.port.SetOutputState(2,true)
m.port.SetOutputState(3,true)
if (colIndex = 0) then m.port.SetOutputState(0,false)
if (colIndex = 1) then m.port.SetOutputState(1,false)
if (colIndex = 2) then m.port.SetOutputState(2,false)
if (colIndex = 3) then m.port.SetOutputState(3,false)
sleep(50)
if (colIndex = 0) then
value_1 = 0
if m.port.IsInputActive(4) then value_1 = value_1 OR &h01
if m.port.IsInputActive(5) then value_1 = value_1 OR &h02
if m.port.IsInputActive(6) then value_1 = value_1 OR &h04
if m.port.IsInputActive(7) then value_1 = value_1 OR &h08
endif
if (colIndex = 1) then
value_2 = 0
if m.port.IsInputActive(4) then value_2 = value_2 OR &h01
if m.port.IsInputActive(5) then value_2 = value_2 OR &h02
if m.port.IsInputActive(6) then value_2 = value_2 OR &h04
if m.port.IsInputActive(7) then value_2 = value_2 OR &h08
endif
if (colIndex = 2) then
value_3 = 0
if m.port.IsInputActive(4) then value_3 = value_3 OR &h01
if m.port.IsInputActive(5) then value_3 = value_3 OR &h02
if m.port.IsInputActive(6) then value_3 = value_3 OR &h04
if m.port.IsInputActive(7) then value_3 = value_3 OR &h08
endif
if (colIndex = 3) then
value_4 = 0
if m.port.IsInputActive(4) then value_4 = value_4 OR &h01
if m.port.IsInputActive(5) then value_4 = value_4 OR &h02
if m.port.IsInputActive(6) then value_4 = value_4 OR &h04
if m.port.IsInputActive(7) then value_4 = value_4 OR &h08
endif
end for
if (NOT value_1 = value_old_1) then
print "Value_1: ";value_1
value_old_1 = value_1
rem m.signalBeacon("Value_1", { value_1: value_1 })
pluginMessageCmd = {}
pluginMessageCmd["PluginName"] = "value_1"
pluginMessageCmd["PluginMessage"] = "value_1"
m.msgPort.PostMessage(pluginMessageCmd)
endif
if (NOT value_2 = value_old_2) then
print "Value_2: ";value_2
value_old_2 = value_2
endif
if (NOT value_3 = value_old_3) then
print "Value_3: ";value_3
value_old_3 = value_3
endif
if (NOT value_4 = value_old_4) then
print "Value_4: ";value_4
value_old_4 = value_4
endif
sleep(10)
count = count +1
if count = 100 then
count = 0
print "-----------Values-----------------"
print "Value_1: ";value_1
print "Value_2: ";value_2
print "Value_3: ";value_3
print "Value_4: ";value_4
endif
return Gpio_Mux
End Function
